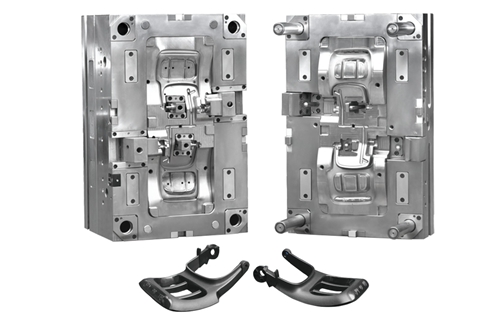

Plastic mold

work-shop2 (1).jpg

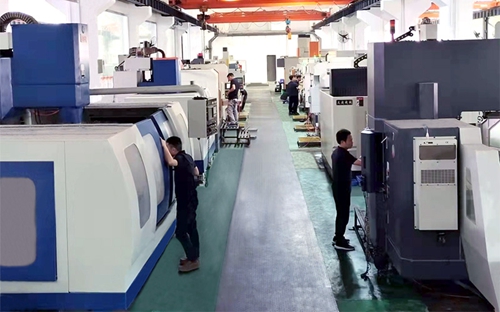

Work shop

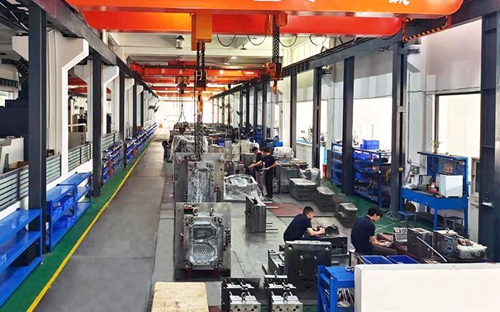

Assembly Team

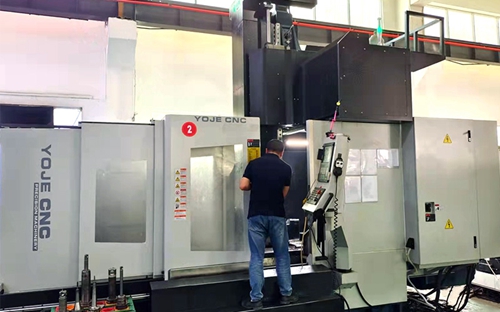

CNC Machine

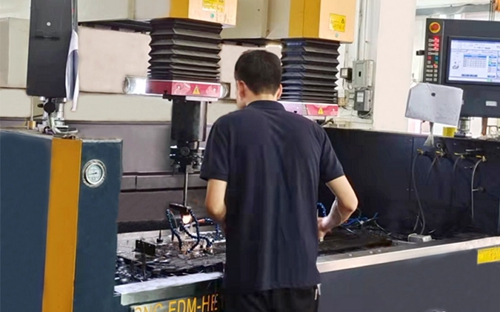

EDM Machine

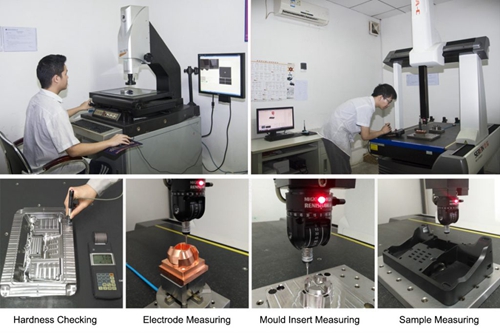

Quality Management

We regard the quality as the life of our company, in order to ensure the excellent quality of the mould. Beyond Mould is equipped with a three coordinate measuring instrument, two-dimensional projector, hardness detector, depth gauge and other high- precision measuring equipment . From mould steel hardness checking to electrodes, mold inserts, samples size measuring, we strictly control the quality, to make customers reassured.

Project Case

Homehold Appliance

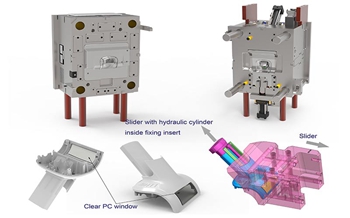

Over Mold

Clear windows for display, need put transparency PC window part inside slider and molding together.

· Part review and analysis
· Mold manufacturing
· Put clear PC inside slider
· Molding ABS with Clear window
· Sliders move out before mold open
· Sliders inside fixing side with dydraulic

Home Appliance

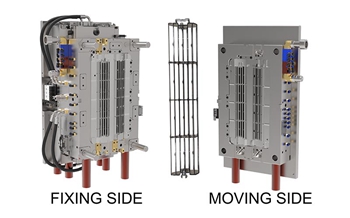

Eject in Fixing side

Becasue this part can’t have any injection point, ejector mark in visitable surface, need make inject in ejection side

· Part review and analysis
· Mold design & manufactuing
· 3 air valuce hot tip to control filling balance
· Eject in injection side by hydraculic cylinders

Industrail Part

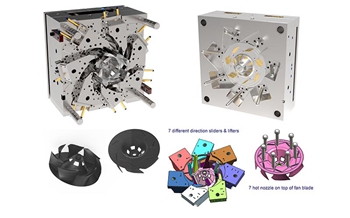

Fan blade with 7 sliders

There are 7 fan blade in this part, and draft angle is not in core direction, so need make 7 different direction sldiers and lifters

· Part review and analysis
· Mold design & manufactuing
· 7 hot nozzle on top of blade to make filling balance
· 7 different direction sliders & lifters for blade
· Important for each blade all balance and same weigh
· Important for defomation compensate in design

Medical Appliance

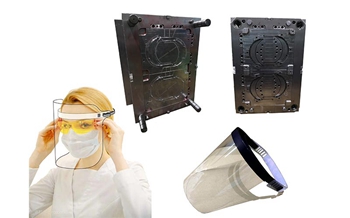

Face Shield

There is very urgent and big market in Europe, we need help customer to design quickly and build mold very fast to ship customer production for COVID 19

· Idea design, research and development
· 3D mode increase
· Build molds with 4 cavity
· Urgent production
· Mold export in 1 month

Homehold Appliance

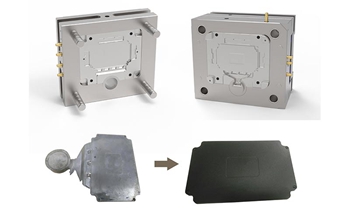

Die Casting

There is IOT device, need nice looking and good heat dispersion. So to make Dia casting tooling for Zinc case.and painting

· Part review and analysis
· Mold design and manufacturing
· die casting tooling
· Produce Zinc parts
· Cut runner and polish burrs
· Sand blasting

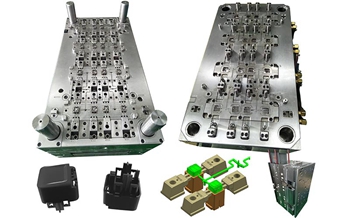

Multi Cavity Mold

laparoscopic simulator

There is very big quantity require for this part, so customer need make multi cavity mold for high valuem production to save production co

· Part review and analysis
· Mold design & manufactuing
· Total 16 cavity with 2 slider for each cavity
· 4 hot nozzle to cold runner
· Each cavity filling must balance in 3%

Electronic Product

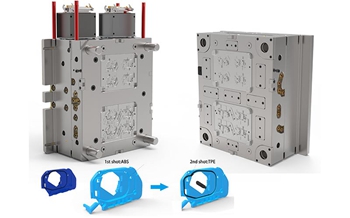

2K Mold Bi Material

For IP68 assembly, need sealing ring between 2 parts. So make short material TPE in second shot.

· Part review and analysis
· Mold manufacturing
· 2K mold in one mold base
· 1st shot: Hard ABS
· 2nd shot: Sofe TPE
· 2 Hot drop to cold runner for 1st shot
· 4 Hot drop to cold runner for 2st shot in middle

Industrail Part

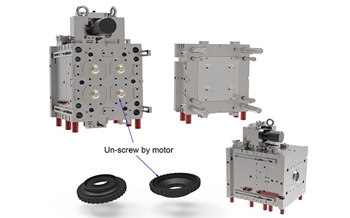

Un-screw Mold

There is thread inside part for assembly, need production by automotive

· Part review and analysis
· Mold design & manufactuing
· 1 motor for 4 cavity with un-screw inserts
· Un-screw parts before de-molding by motor
· Cold runner to 3 pin gate for each cavity

Industrail Part

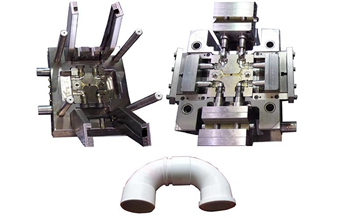

Tube Mold

There is 90 degree tube， need 2 different sliders to kiss off holes

· Part review and analysis
· Mold design & manufactuing
· 90 degree 2 sliders for each cavity with long strock
· Precision for mismatch between sliders
· Cold runner to edge gate
